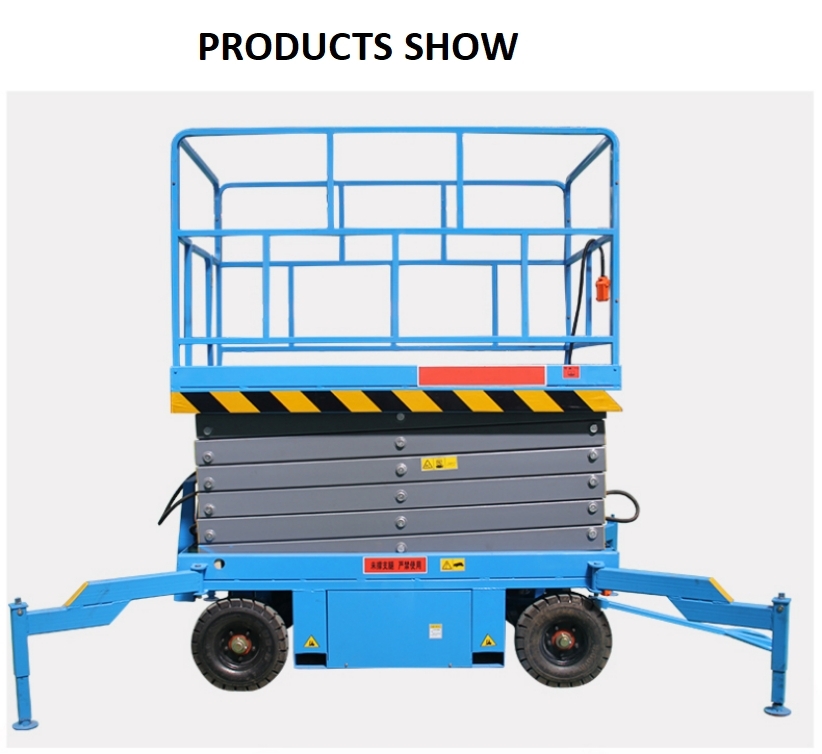

Fully Automatic Mobile Lifting Platform Electric Lift Table 10m
Elevator Scissor
OCTETALLY WORKPLATFORM adopts modern design such as modularization,
light weight, common alization and intelligence and provides large
lift
capacity and high reliability. Four-wheel drive and oscillating
axle system greatly improves off-road performance. With a
grade ability of 40%, it can adapt to all kinds of extreme access
jobs. Lubrication-free boom system minimizes equipment holding
costs. Swing-out engine tray makes regular maintenance more
convenient. POST (power on self test), and maintenance alert for
efficient fleet management.
Drive on all terrains.
Large ground clearance, stronger passing ability.
AC motor drive, smooth driving, great micro mobility.
8 packs of batteries, more durable and long service time.
Options & Accessories
● Working Lamp on the platform
● Load Sensing System
● AC Power to the Platform
● Air Tube to the Platform
● Outriggers
| Model Type | SPS5.0 | SPS5.9 | SPS6.8 |
| Max. Platform Height (mm) | 3000 | 3900 | 4800 |
| Max. Working Height (mm) | 5000 | 5900 | 6800 |
| Lift Rated Capacity (kg) | 300 | 300 | 300 |
| Ground Clearance (mm) | 60 |
| Platform Size (mm) | 1170*600 |
| Wheelbase (mm) | 990 |
| Min. turning radius (mm) | 1200 |
| Max. Drive peed(Platform Lifted) | 4km/h |
| Max. Drive Speed(Platform down) | 0.8km/h |
| Lifting/falling speed (SEC) | 20/30 |
| Max. Travel Grade (%) | 10-15 |
| Drive motors (V/KW) | 2×24/0.3 |
| Lifting motor (V/KW) | 24/0.8 |
| Battery (V/AH) | 2×12/ 80 |
| Charger (V/A) | 24/15A |
| Max allowable working angle | 2° |
| Overall Length (mm) | 1180 |
| Overall Width (mm) | 760 |
| Overall Height (mm) | 1830 | 1930 | 2030 |
| Overall Net Weight (kg) | 490 | 600 | 600 |
FAQ:
1.Are you manufacturer/factory?
Yes,OCTEALLY TECH is a specialized foklift Truck manufacturer and
supplier.
2.Do you have any certificate?
Yes,we are ISO90001 certified and SGS certified enterprise.Our
forklift trucks have CE certifcation.
3.Does your factory offer OEM &ODM service?
Yes,we can provide customized products as per your
request,non-standard products are acceptable
4.What is the HS code?
(1)For electrical forklift(battery forklift),HS code is 8427109000
(2)For diesel forklift,HS code is 8427209000
5.How long is your delivery time?And what is the M0Q?
Generally,it is 5~10days while we have the forklifts in
stock,otherwise,it will be around 15~20 days to produce the
forklifts,depending on the models and quantity. MOQ is 1 unit
only,and then we can start our business.You will experience our
good service
6.What is your warranty?
We offer professional and timely after sales service.We grant our
clients a 12 months or 2000 hours warranty for every machine we
sell.During the warranty period,in case the defect of material or
workmanship has occurred with spare parts in normal operation,the
defective parts will be replaced free of charge as compensation.We
will cover the express cost!
