    1000w 1500w 2000w 3000w Laser Welding Cleaning Cutting Machine 3 In 1

    Ask Lasest Price
    Brand Name : OTA
    Model Number : OTQX-1000
    Certification : CE, ISO
    Price : USD2350-USD5980
    Payment Terms : L/C, T/T
    Supply Ability : 100SETS/MONTH
    Delivery Time : 10-15 DAYS
    • Product Details
    • Company Profile

    1000w 1500w 2000w 3000w Laser Welding Cleaning Cutting Machine 3 In 1

    1000w 1500w 2000w 3000w Laser Welding Cleaning Cutting Machine 3 In 1


    Product descriptions:

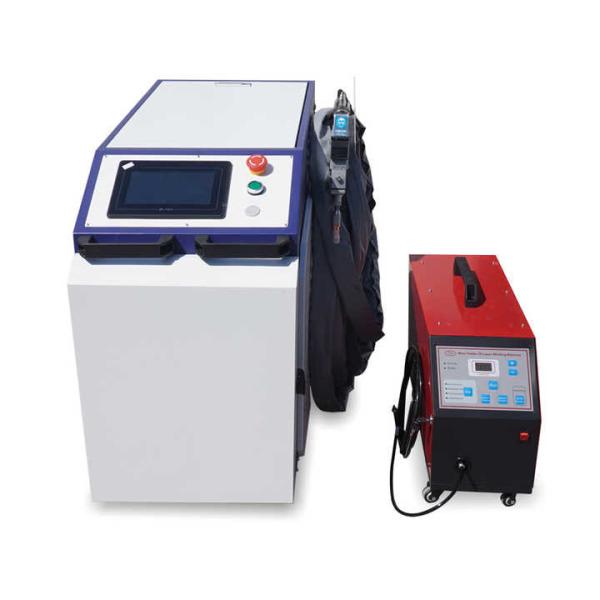

    This multi-functional laser machine integrates the three functions of laser welding, cleaning and cutting. It is a revolutionary product in the field of industrial manufacturing and processing. It uses the most advanced laser technology to complete high-quality welding, cleaning and cutting work in a short time. The machine has four power options of 1000 watts, 1500 watts, 2000 watts and 3000 watts, which can be selected according to different materials and processing needs.


    At the same time, the machine is also equipped with an auto-focus function, which can quickly and accurately process materials of different thicknesses. While ensuring efficient and high-precision processing, the machine also has the advantages of simple operation, stability and reliability. It is one of the indispensable and important equipment in the fields of factory automation and intelligent manufacturing.




    Laser Power1000W1500W2000W3000W
    Welding depth
    (SS)
    2.68mm3.59mm4.57mm6.87mm
    Welding depth
    (CS)
    2.06mm2.77mm3.59mm4.79mm
    Welding depth (Al)2mm3mm4mm6mm
    Feeding Wires
    Dimenson
    0.8-1.2 wire0.8-1.6 wire0.8-1.6 wire0.8-2.0 wire
    Laser Wavelength1070+/-10 nm1070+/-10 nm
    Laser Frenquency50-5000HZ50-5000HZ
    Position SystemRed Light IndicatorRed Light Indicator
    Power Adjustment10-100%10-100%
    Cooling MethodWater ChillerWater Chiller
    Spot Size1.2-3.0mm(option)1.2-3.0mm(option
    Welding HeadWobble Laser Welding HeadWobble Laser Welding Head
    Power Instability<3%<3%
    Shielding Gas Flow15-20 L/min (Ar Or N)15-20 L/min (Ar Or N)
    Power Supply220V 50860HZ220V/380V /50860HZ
    Size(L*W*H)CM90*40*7090*40*70115*65*87
    Net Weight190KG210KG220KG230KG
    Total Powe
    Consumption
    ≤3KW≤4.5KW≤6KW≤9KW

    Advantages of laser welding machine:

    1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
    2.High cooling rate, which can weld fine weld structure and good joint performance.
    3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
    4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high,
    the appearance is smooth, flat and beautiful.
    5.No consumables, small size, flexible processing, low operating and maintenance costs.
    6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
