Ce Portable CNC 100w 200w 1000w 2000w Metal Fiber Laser Cleaning
Machine
Product descriptions:
Laser Cleaning Machine Equipment is a high-tech cleaning device
that has been developed to provide a more efficient and effective
way of removing rust and oxide deposits from metal surfaces. This
device combines the latest laser technology with a handheld design,
making it easy to maneuver and access hard-to-reach areas.
The laser cleaning machine equipment uses a powerful laser beam to
penetrate the surface of the metal, breaking up and removing rust,
oxide, and other impurities. This process is much faster and more
effective than traditional cleaning methods, such as sanding or
chemical cleaning. Additionally, the laser cleaning process does
not require any harsh chemicals or solvents, making it safer for
the operator and the environment.
The handheld design of the Rust Removal metal Oxide Cleaner Laser
Cleaning Machine Equipment allows for easy manipulation and
control, even in confined spaces.
The device is lightweight and ergonomic, making it easy to use for
extended periods of time without causing fatigue. It also features
a built-in power supply and a long-lasting battery, allowing for
continuous operation without the need for frequent recharging.
Overall, the Handheld Rust Removal metal Oxide Cleaner Laser
Cleaning Machine Equipment is a versatile and efficient tool for
removing rust and oxide deposits from metal surfaces. It offers a
safe, environmentally friendly, and cost-effective alternative to
traditional cleaning methods, making it an invaluable addition to
any metalworking or maintenance workshop.
Product Specification | ||||
Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |

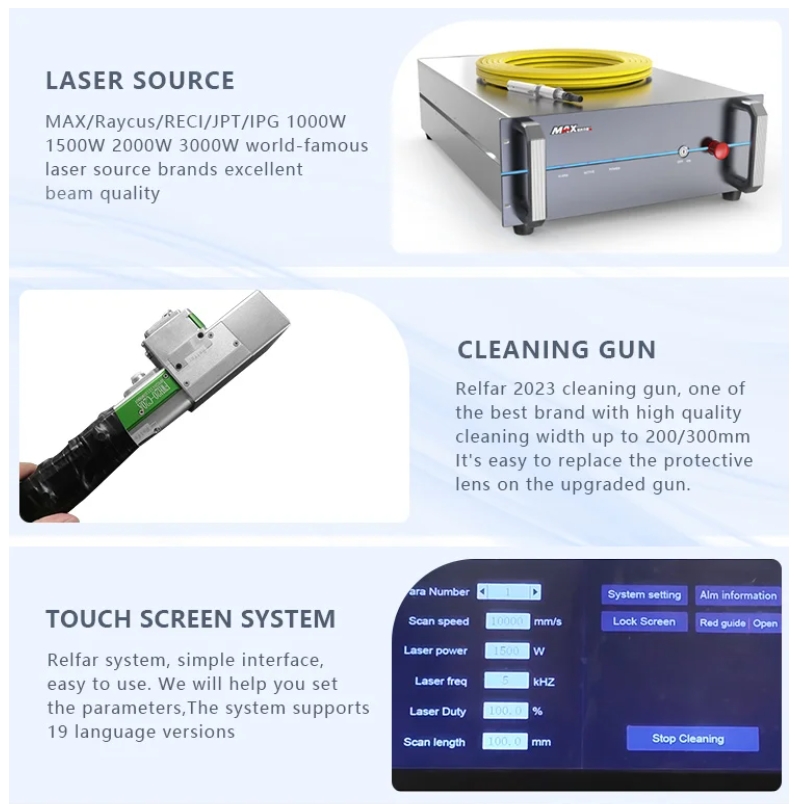

Laser source power | 1000w | 1500w | 2000w | 3000w |
Laser wavelength | 1080±10mm | |||
Laser type | Continuous/Modulation | |||
Maximum Modulation Frequency | 20khz | |||
Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
Scan Width | 10-160mm | |||
Power configuration | AC 220V±10% | AC 380V±7% | ||
6KW | 8KW | 10KW | 13KW | |

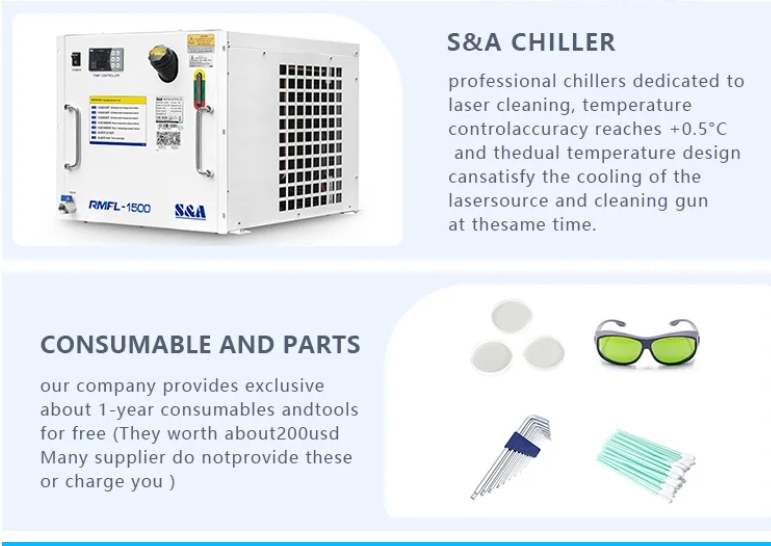

Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m | |
Packing Dimension | 1120*565*1050mm | 1430*720*1220m m | ||
Net weight | 106kg | 113kg | 137kg | 235kg |
Gross Weight | 138kg | 145kg | 169kg | 280kg |
Water tank Capacity | 16L(14-15L of water to be added |
Features
>1) > Powerful, short pulses, fast moving laser pulses act on the surface
of the target, producing tiny plasma ruptures, shock waves,thermal
stress, etc., causing surface materials to sublimate and evaporate.
2) The focused laser beam is capable of accurately evaporating
surface objects or dirt.
3) Fiber Laser cleaning is suitable for metal surfaces. The treated
and optimized laser beam does not alter metal properties or damage
those laser treated surfaces. The precisely tuned laser beam acts
only on the coating, residual residue or oxide, and does not harm
the underlying parent metal surface.
4) By adjusting other parameters, the laser beam is able to achieve
the desired cleaning effect accurately and easily.
Factory & Stocks
Packing & shipping
Certificate
FAQ:
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning
machine,and the cleaning speed is within the range of
0.5m²/h-15m²/h
2.Is it possible to clean the mold?
Yes,You can give us your mailbox, and we will send the video of the
laser cleaning machine cleaning the mold to your mailbox
3.The effect of paint and rust removal Very good, you can refer to
our video below
4.Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning
effect, and the continuous type has a faster cleaning
speed,Relative damage of material, pulse type is less than
continuous type.
5.Language interface
Support Chinese and English, and language settings can also be set
according to customer needs
6.classification of cleaning
objects oxide layer/rusty scale/Paint, coating/Dirt, carbon
layer/Others
![]() |
