HB-12 Rotating Welding Positioner Rotate Round Or Tubular Work Pieces

Ask Lasest Price
Brand Name :	OTA
Certification :	CE, ISO
Delivery Time :	10-15 DAYS
Payment Terms :	L/C, T/T
Supply Ability :	100SETS/MONTH

Add to Cart

Product Details

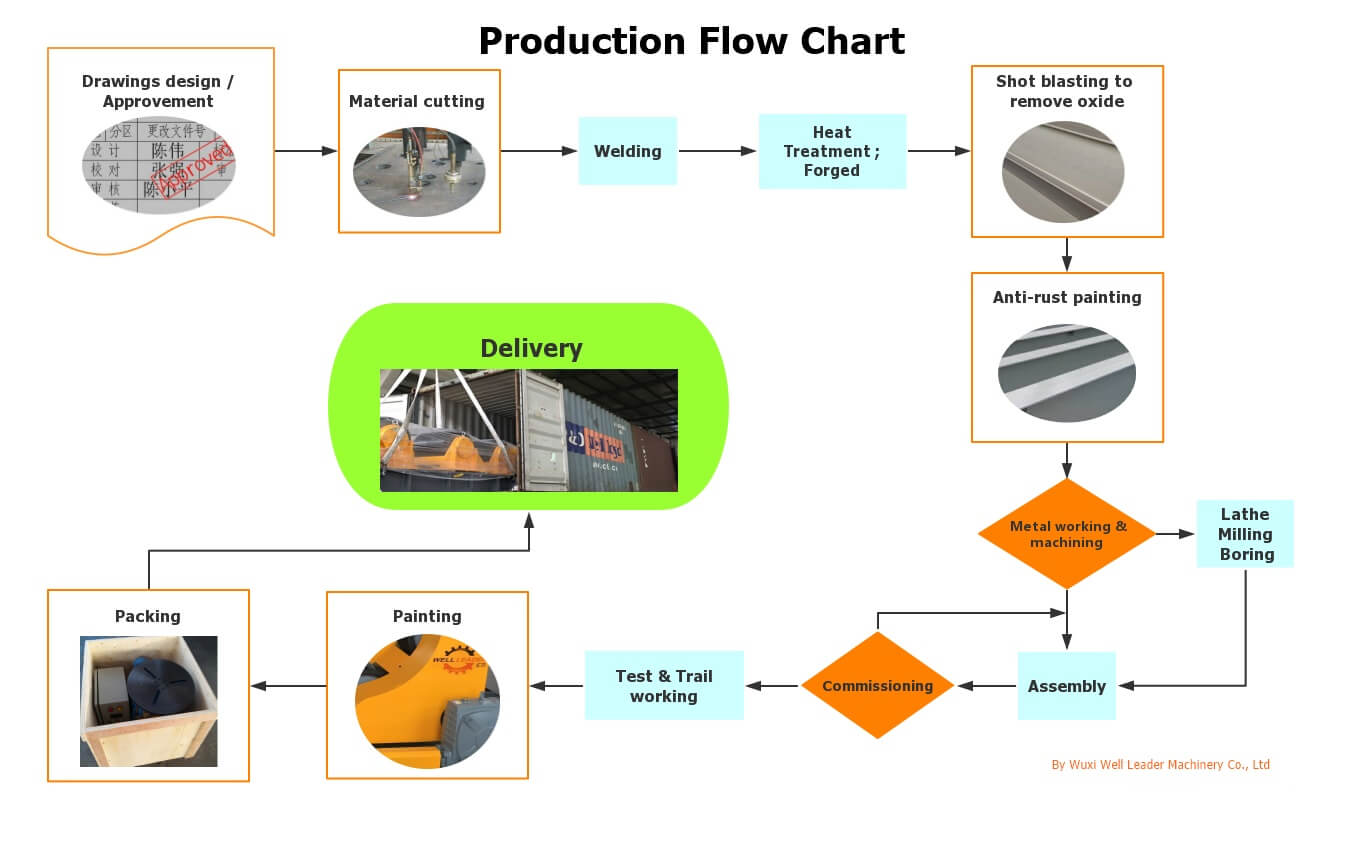

Company Profile

HB-12 Rotating Welding Positioner Rotate Round Or Tubular Work Pieces

Our Welding positioner is designed rotate round or tubular work pieces such as flanges and pipes through 360 degrees to allow a welder to stand in one position and constantly work on a level surface. This prevents worker fatigue and increases productivity since the welder does not need to constantly move around the workpiece to complete the weld. This method of work piece presentation also tends to ensure consistently high quality welds since no overhead or vertical runs are involved. Joining pipes or attaching pipe fittings such as flanges and valves is a problematic task from an execution perspective due to the 360-degree work plane. Without the use of a tool such as the welding positioner, the worker may have to constantly move around and under the workpiece to complete the joint, which is not conducive to good quality welding. To avoid frequent interruptions on welding seams, a welding positioner is a necessary and effective welding tool.

Auto Welding Positioner With Rotating Table for pipe

Click below video for checking the working demonstration.

Features:

- Hi- precision slew bearing structure with unlimitation rotating 360o.

- Mitsubishi / Schneider Inverter to provide stepless variable speed.

- Siemens / Schneider electical components.

- Remote box with long cables.

- Wireless remote box.

- Indication of tilting degree

- Limited switch to prevent over tilting.

- Quick power cable connector is furnished.

- CE approved.

Technical Parameters:

- Rated tilting capacity: 1200kgs at full position

- Max Gravity: 300mm

- Max eccentric: 200mm

- Rotate speed: 0.12-1.2rpm

- Tilting speed: 0.35rm

- Tilt range: 0-120deg

- Rotate motor: 1.1kw

- Tilt motor: 1.1kw

- Table size: Φ1200mm

- Chuck clamping range: 2”-10”

Supply Range (For each standard model):

-Main body with motors&gearbox, table, bearings, etc.

-Control cabinet with Schneider components & quick power cable connector

-Remote control box with 6m cable

- Wireless remote box

-Foot pedal

-Welding chuck WP-300 for 2”-10” pipe

-Relative documents inc. mechanical drawings, electrical diagram, operation manual, etc.

-Spare parts: pushbuttons, lights, potentiometers.

Model	HB-03	HB-05	HB-08	HB-10	HB-20	HB-30	HB-50	HB-100
Rated capacity	300kg	500kg	800kg	1000kg	2000kg	3000kg	5000kg	10000kg
Max gravity at rated capacity	200mm	250mm	300mm	300mm	300mm	300mm	300mm	400mm
Max eccentric at rated capacity	150mm	150mm	150mm	150mm	200mm	200mm	200mm	200mm
Rotate speed(rpm)	0.2-2	0.12-1.2	0.12-1.2	0.12-1.2	0.1-1.0	0.05-0.5	0.05-0.5	0.05-0.5
Tilting speed(rpm)	by hands/1.3	0.35	0.35	0.35	0.35	0.35	0.2	0.2
Tilt range	0-90°	0-90°	0-90°	0-120°	0-120°	0-120°	0-120°	0-120°
Rotate motor power	0.37kw	0.4kw	0.4kw	0.55kw	0.75kw	1.1kw	1.5kw	1.5kw
Tilt motor power	0.37kw	0.37kw	0.37kw	0.55kw	0.75kw	1.1kw	1.5kw	2.2kw
Table diameter	Φ600mm	Φ800mm	Φ800mm	Φ900mm	Φ1100mm	Φ1300mm	Φ1600mm	Φ2000mm

Sold to: Germany, Denmark, Romania, New Zealand, Australia, Singapore, Indonesia, Malaysia, Argentina, Brazil, Chile, Turkey, Syria, Israel, Saudi Arabia, Vietnam, India, etc.
