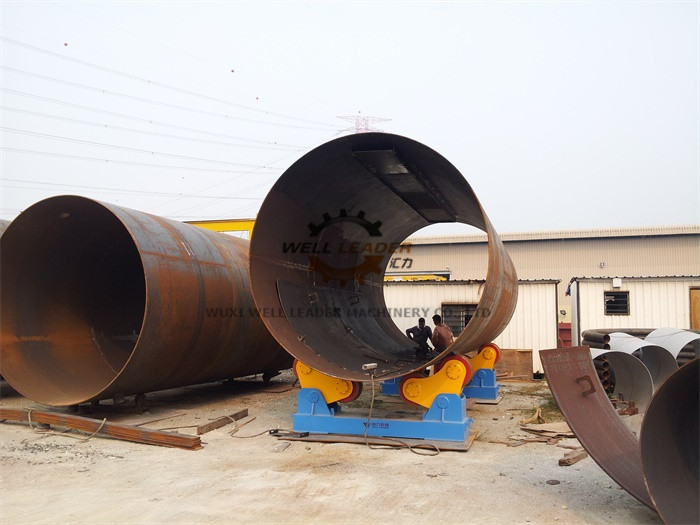

Our standard GZ welding rotator is a self alignment type without
adjusting rollers position, which is designed and produced to
better satisfy the growing demands for the pressure vessel
manufacturers both domestically and internationally. It can be
applied to a wide range of diameters, and it adopts frequency
conversion setting and stepless speed regulation mode which provide
a smooth speed variation for welding purpose.
This rotator features stable and reliable performance, low noise,
easy operation, and self suitable.
Widely Applications in:
- Chemicals & petrochemicals industry
- Boiler industry
- Storage tank fabrication
- Pipe industry
- For Welding, Painting, Blasting, Assembly etc
Click below video for checking the working demonstration.
| Model | Max loading
(Kg) | Applied job dia
(mm) | Wheel dia. & width(mm) | Motor power(kw) | Speed |
| Rubber or PU | Metal |
| GZ-5 | 5000 | Φ250-2300 | Φ250*100 | 2*Φ244*20 | 0.75 | Variable |
| GZ-10 | 10000 | Φ320-2800 | Φ300*120 | 2*Φ290*25 | 1.1 | Variable |
| GZ-20 | 20000 | Φ500-3500 | Φ350*120 | 2*Φ340*30 | 1.5 | Variable |
| GZ-30 | 30000 | Φ600-4000 | Φ350*120 | 2*Φ340*30 | 3 | Variable |
| GZ-40 | 40000 | Φ600-4200 | Φ400*120 | 2*Φ390*40 | 3 | Variable |
| GZ-50 | 50000 | Φ700-4500 | Φ400*120 | 2*Φ390*40 | 4 | Variable |
| GZ-60 | 60000 | Φ750-4800 | Φ450*120 | 2*Φ440*50 | 4 | Variable |
| GZ-70 | 70000 | Φ800-4900 | Φ450*120 | 2*Φ440*50 | 4 | Variable |
| GZ-80 | 80000 | Φ850-5000 | Φ500*120 | 2*Φ490*60 | 4 | Variable |
| GZ-90 | 90000 | Φ900-5200 | Φ500*120 | 2*Φ490*60 | 5.5 | Variable |
| GZ-100 | 100000 | Φ1000-5500 | Φ500*120 | 2*Φ490*80 | 5.5 | Variable |
| GZ-150 | 150000 | Φ1100-6000 | - | Φ600*280 | 7.5 | Variable |
Features:
Brand motor “Invertek”/ABB/SIEMENS & gearbox
Brand heavy duty bearings
High quality PU material
Schneider Inverter control speed variation
Schneider electrical components
Remote box with long protective cables
Wireless remote control for extreme long workpiece
Quick connector for easy starting machine
Control cabinet is water proof, dust proof & CE approved
Technical Parameters:
Turning Capacity: 40T
-Roller Diameter : Φ400mm
-Roller width: 200 mm
-Roller surface speed range: 100-1000mm / min
-Loaded Vessel/Tank diameter range: Φ600-4200mm
-Drive unit: AC frequency conversion motor and qualified gearbox.
-Wheel center adjustment (for both drive unit and Idler unit): Self
Align Type.
-Remote control: Remote control pendent with 6mtrs long Cable
-Rotational speeds (variable speed AC drive): Step-less variable
speeds are to be adjusted from min 100mm/min to max 1000mm/min by a
potentiometer on the remote control through inverter.
-Rollers: PU
-Motor power: 3kW
-Power supply: 380V/400V/415V/440V, 50/60Hz, 3-Phase.
Supply Range (For standard model):
-01 unit power with motors & gearbox, control cabinet mounted.
-01 unit powerless idler
-01 Pendant box with 6mtrs cable
-01 Wireless remote box
-Relative documents inc. mechanical drawings, electrical diagram,
operation manual, etc.
-Spares: Pushbuttons, potentiometer, relays.
